Pictures of the Coding Session in Bad Schoenborn#

19-21. August 2005

Participants:

  • Florian Dingler
  • Thomas Grasel
  • Carsten Strotmann

Pictures#

  • Thomas with his Hardware Development Systems:
  • Florian working on the Hex2Bin Converter:
  • Carsten working on USB Floppy Support for USBTEST:
  • Florian and Thomas trying to spot an error :

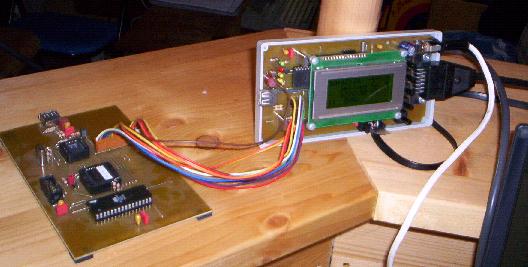

  • Guess what this is?:

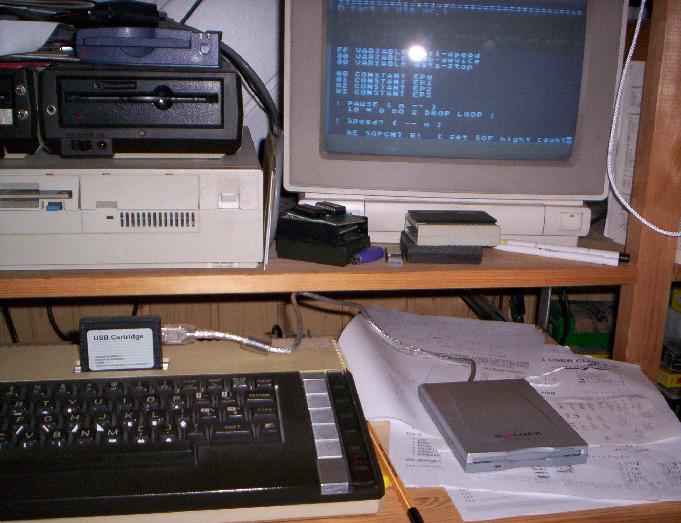

  • Atari with USB Floppy:

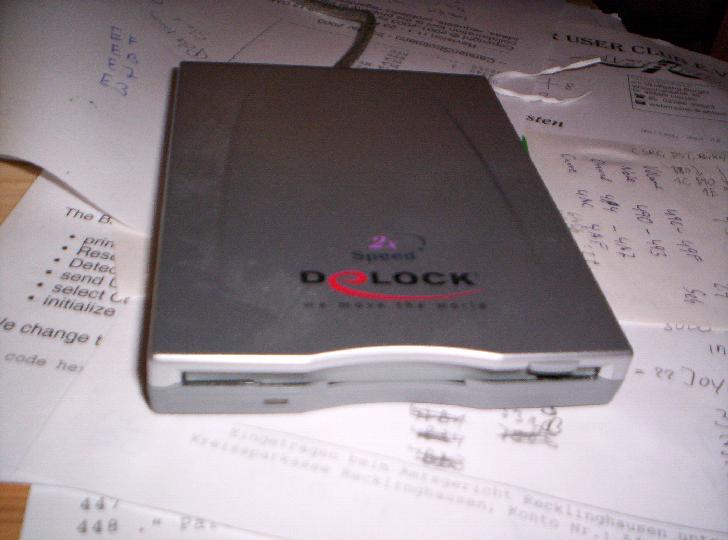

  • DeLock USB Floppy:

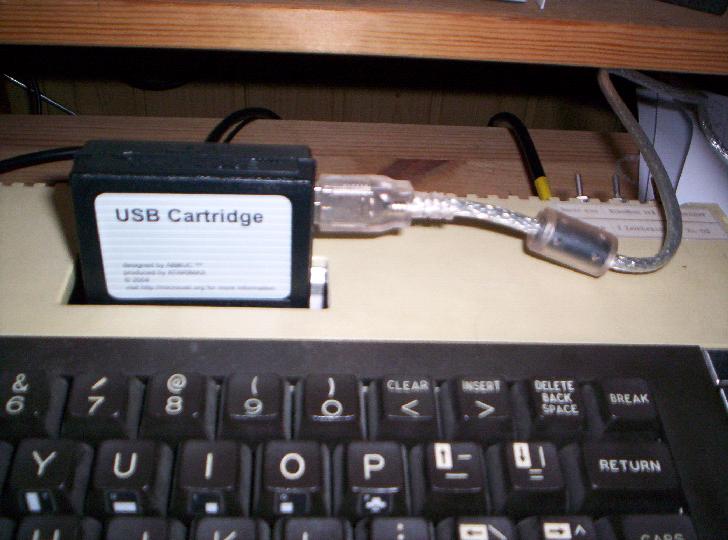

  • AtariMax/ABBUC USB Cart:
  • Florian hacking-in a CRC Table:

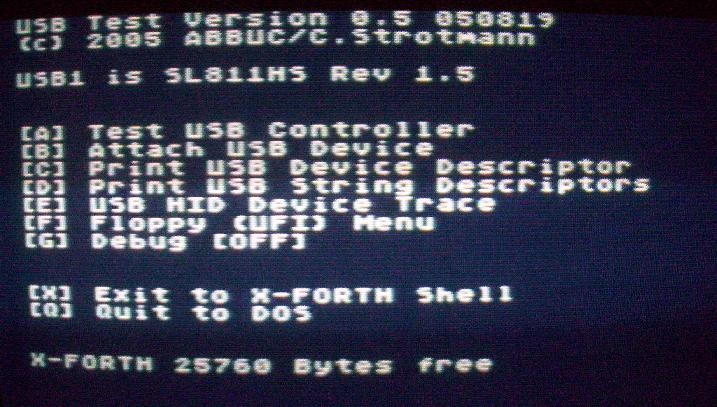

  • USBTEST 0.5 Main Menu:

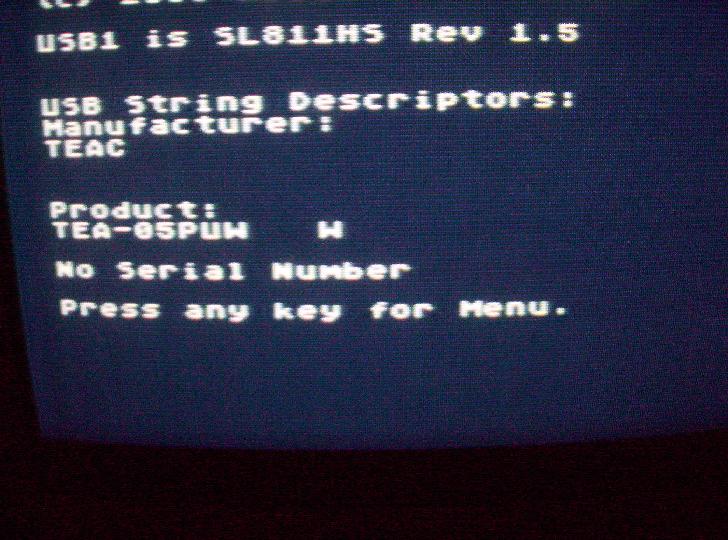

  • USB Device String Descriptors:

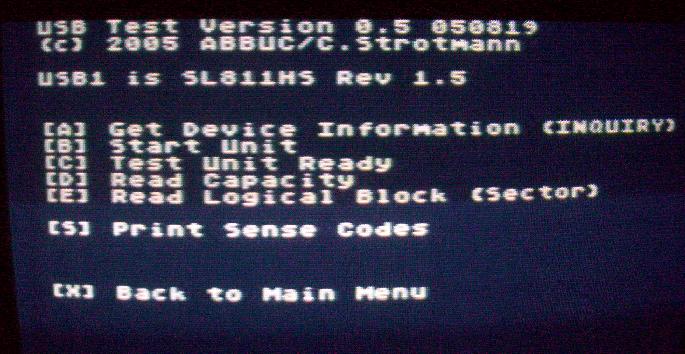

  • USBTEST 0.5 Floppy Menu:
  • UFI Device Inquiry:
  • FLoppy Device Capacity Values, 2880 Sec * 512 Byte:
  • MS-DOS FAT Disk Bootsector:
  • MS-DOS FAT Disk Bootsector (Closeup):
