SynCalc Copyright (C) 1983, 1985 Synapse Software Corp. and Mike Silva#



SynCalc from Synapse and programmed by Mike Silva is the(!) spreadsheet for the Atari 8 bit. No program of that kind reaches the performance SynCalc does.

In 2016 Mike Silva gave SynCalc into public domain including source code! Mr. Silva, the Atari community is forever in your debt! Thank you so much, we really appreciate your help. You are now in the hall of fame.

Thank you Mike Silva!!!

Further credit goes to Brian Lee, the product manager, who was very involved in guiding the look-and-feel and the overall functionality of the program. Thanky you so much Mr. Lee, we really appreciate your help, then and now. :-)

Because the source code listing as well as the disk files are lost, it would be cool, if someone out there is in the possession of that, if you can share it with the community. Many thanks in advance. :-)

Officially, 2 version were sold, one from 1983 and the other from 1985. Of course, there are others out there in the web, mostly patched and cracked ones.
Versions:

  • 1983 Version, works with all models and Axlon (up to 256k) compatiable RAM expansions, ATX available
  • 1985 Version, works with all models and Axlon (up to 256k) and XE (up to 64k) compatible RAM expansions, ATX available
  • 1993 Version, works only with XL/XE models and XE (up to 256k) compatiable RAM expansions ATR available

1983 Version#

The 1983 version was the first one, it had some bugs, but was and still is marvelous. The only bug we know is as follows:
if you have a value in the 255th line and insert one line more, the Atari crashes and your work is lost. In my opinion a bug we can live with. If you have a bug-list of the 1983 version, please let us know. Your help is very much appreciated in this case.

1985 Version#

The 1985 version should be free of bugs, further, it was sold with a template disk, please see below. This version uses extended RAM, if available. For example, in an Atari 130XE there is more than 80 KB RAM available. But the user has to take care, because the limit for storing data on diskette is 90 KB. The goal should be, to create an atr-image for all Ataris (Classic, XL, XE) free of bugs and just limited to the installed RAM. Further, to get rid of the 90 KB data storage limit.

1993 Version#

Appears to be based on the 1983 version. All "STA $CFFF" bank select statements are replaced by "JSR $0101", pointing to a small subroutine that maps the Axlon bank number to and XE bank in PORTB.

Port B FF EFEBE7E3AFABA7A38F8B8783FFFF
Model 800/XL 130 XE 130 XE 130 XE 130 XE RAMBO RAMBO RAMBO RAMBO RAMBO RAMBO RAMBO RAMBO n/a n/a
Total RAM (k) 48/64 128 128 128 128 192 192 192 192 256 256 256 256 n/a n/a

See also http://atariage.com/forums/topic/208094-who-can-crack-this-one.

Manuals#

ATR images#

RAW files from the Kryoflux#

  • Kryoflux-raw-no-flippy.zip(info) ; size: 22.9 MB ; A very big thank you goes to Freddy Offenga for creating the raw files from our original SynCalc 128K diskette. Freddy, great work! Thank you so much! :-)

RAM configuration; findings from JAC! from AtariAge#

From p. 5 of the documenation:
"What You Will Need
1. An ATARI home computer
2. An ATARI disk drive (up to 2).
3. The program diskette, enclosed in the inside front cover pocket of the manual.
4. At least 48K of memory.
5. A TV set or other video monitor. A black and white set will work.
6. Blank diskettes for storing data.
Optional:
ATARI printers for obtaining hard copy versions of reports.
You can also use the Axlon Rampower 128K or Mosaic 64K Select to increase your computer's capacity."

From p. 9 of the documenation:
"NOTE: The memory indicator will be nnn/NNN where nnn = amount of memory used in K bytes and NNN = total amount of memory available in K bytes (1 K byte is equal to 1024 characters). When you notice that the memory indicator shows that the worksheet is becoming full, you should save the worksheet to disk and then reload it. This may free up additional memory space. The amount of memory will vary according to the configuration of your computer."

Hardware Base RAM Expansion Free Memory in 1983 Version Free Memory in 1985 Version Free Memory in 1993 Version
Atari 800 48k none 21k 21k n/a
Atari 800 52k none 25k 25k n/a
Atari 800 48k 64k Axlon 69k 69k n/a
Atari 800 48k 128k Axlon 133k 133k n/a
Atari 800 48k 256k Axlon 245k 245k n/a
Atari 800 48k 512k Axlon 245k 245k n/a
Atari 800 48k 1024k Axlon 245k 245k n/a
Atari 800 48k 2048k Axlon 245k 245k n/a
Atari 800 48k 4096k Axlon 245k 245k n/a
Atari 800 XL 64k none 21k 21k 21k
Atari 800 XL 64k 256k Rambo 21k 84k 213k
Atari 800 XL 64k 256k Compy 21k 84k 149k
Atari 800 XL 64k 512k Rambo 21k 84k 213k
Atari 800 XL 64k 512k Compy 21k 84k 149k
Atari 800 XL 64k 1024k Rambo 21k 84k 213k
Atari 130 XE 64k 64k Atari 21k 84k 85k

The disk contains a boot loader in the sectors 1-8 and two versions of the program. The first version starts at sector 18 ($12) supports the Axlon compatiable memory expansions with the banking register $CFFF. The second version starts at sector 62 ($3E) and supports the XE compatible memory expansions with the banking register $D301 (PORTB). In both cases, the extended memory is banked in at $4000. If an extended memory bank at $4000 is available for the banking value $E3 during the boot process, the second version is loaded.

1B3B: LDY #$EF
1B3D: LDA #$E3
1B3F: STA PORTB
1B42: TXA
1B43: STA $4000,X
1B46: STY PORTB
1B49: EOR #$FF
1B4B: STA $4000,X
1B4E: INX
1B4F: BPL $1B3D
1B51: LDX #$00
1B53: LDA #$E3
1B55: STA PORTB
1B58: TXA
1B59: CMP $4000,X
1B5C: BNE $1B6C
1B5E: INX
1B5F: BPL $1B58
1B61: LDA #$3E
1B63: STA $84
1B65: LDA #$00
1B67: STA $85
1B69: JMP $1B74
1B6C: LDA #$12
1B6E: STA $84
1B70: LDA #$00
1B72: STA $85
... load main part

Findings from Mike Silva:#

Zero page

$95 Current Spreadsheet Row (all rows and columns are zero-based)
$96 Current Spreadsheet Column

$99 Current Screen Y
$9A Current Screen X

$9F Current Cell Data Pointer (points to data of current cell)

$A7 Last Spreadsheet Row
$A8 Last Spreadsheet Column

$CA Last Added Cell Data Pointer (a stack pointer to next free memory to add new cell data) More below #1

Non-zero page

$1901 Array of column widths

$19DB Last direction of cursor movement (1=left, 2=right, 3=up, 4=down)

$1A00 Screen memory

$2BF3 Array of 3-byte cell structures. Each structure consists of a 2-byte cell data address, followed by one additional byte (more below #2). Array order is A1, B1, C1,...n1, A2, B2, C2,...n2,...Am, Bm, Cm,...nm where n is last sheet column, m is last sheet row.

  1. 1 Cell data is form B1, B2, B3, cell data (variable number of cell data bytes).
B1: D7-D6 = number format code
D5 = comma flag
D4 = dollar flag
D3 = percent flag
D2 = ??? haven't figured this one out
D1-D0 = sign code
B2: D7-D6 = justify code
D5-D4 = ??? haven't figured this one out
D3 = protect value flag
D2-D0 = margin value 0-7
B3: D7 = protect entry flag
D6-D0 = length of cell data that follows

Cell data is either text or ATARI numeric. In formula cells the value of the formula is first, followed by the actual formula.

  1. 2 Additional cell info byte
    D7-D6 = cell type (01 = text, 10 = numeric, 00 = empty cell?)
    D5-D2 = precision value
    D1-D0 = ???

The cell data stack grows downward from $7FFF on a 48k machine. By testing other hardware it will be possible to see where the stack begins in different memory circumstances, and also perhaps to ID some other addressing bits in the cell pointer array, bits that are just zero in the base 48k version.

Problems when importing VisiCalc files ; findings from luckybuck#

SynCalc holds an import program, called: 'VC->SC' in order to read in files from the VisiCalc program. All versions(!) out there, except the original ones are not able to import properly VisiCalc files! The SynCalc program tries to load a convert program from the original program disk. If this fails, you get the following pictures:

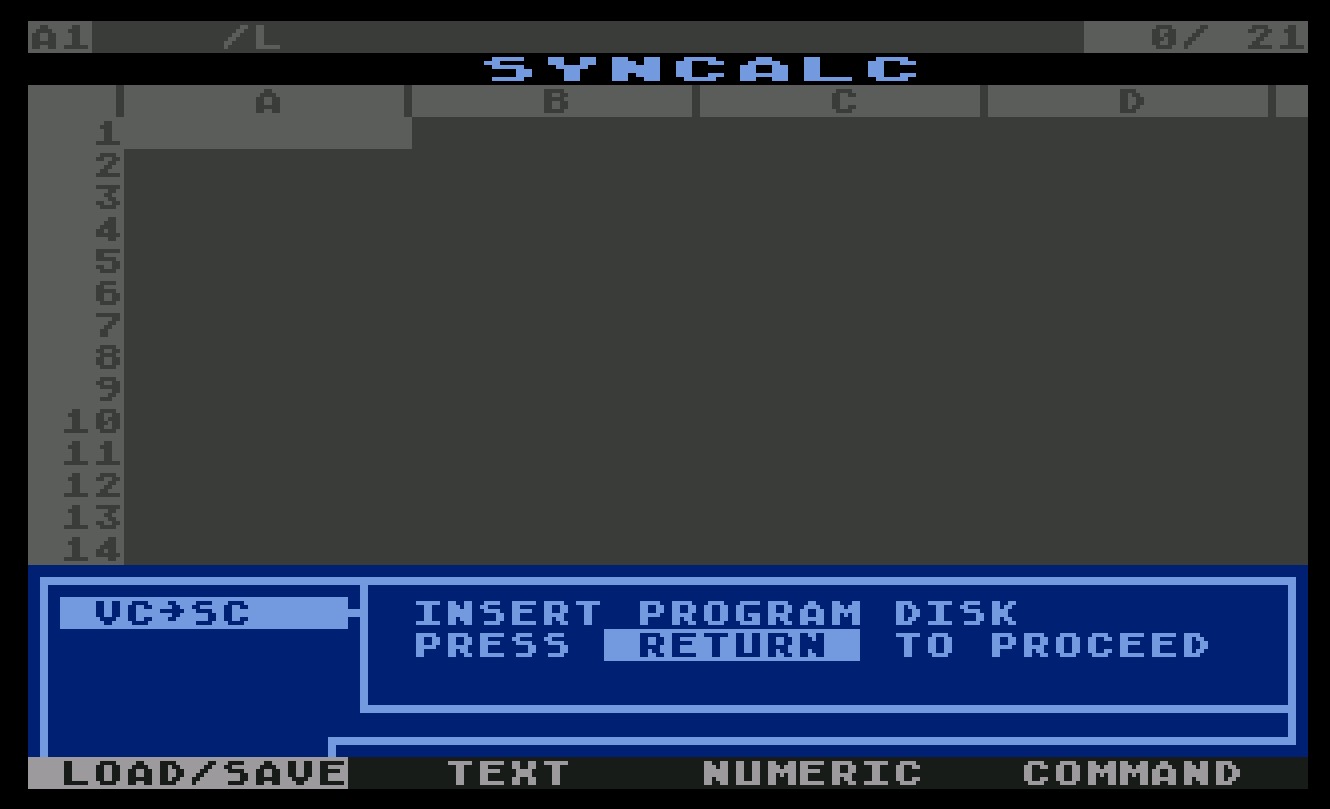

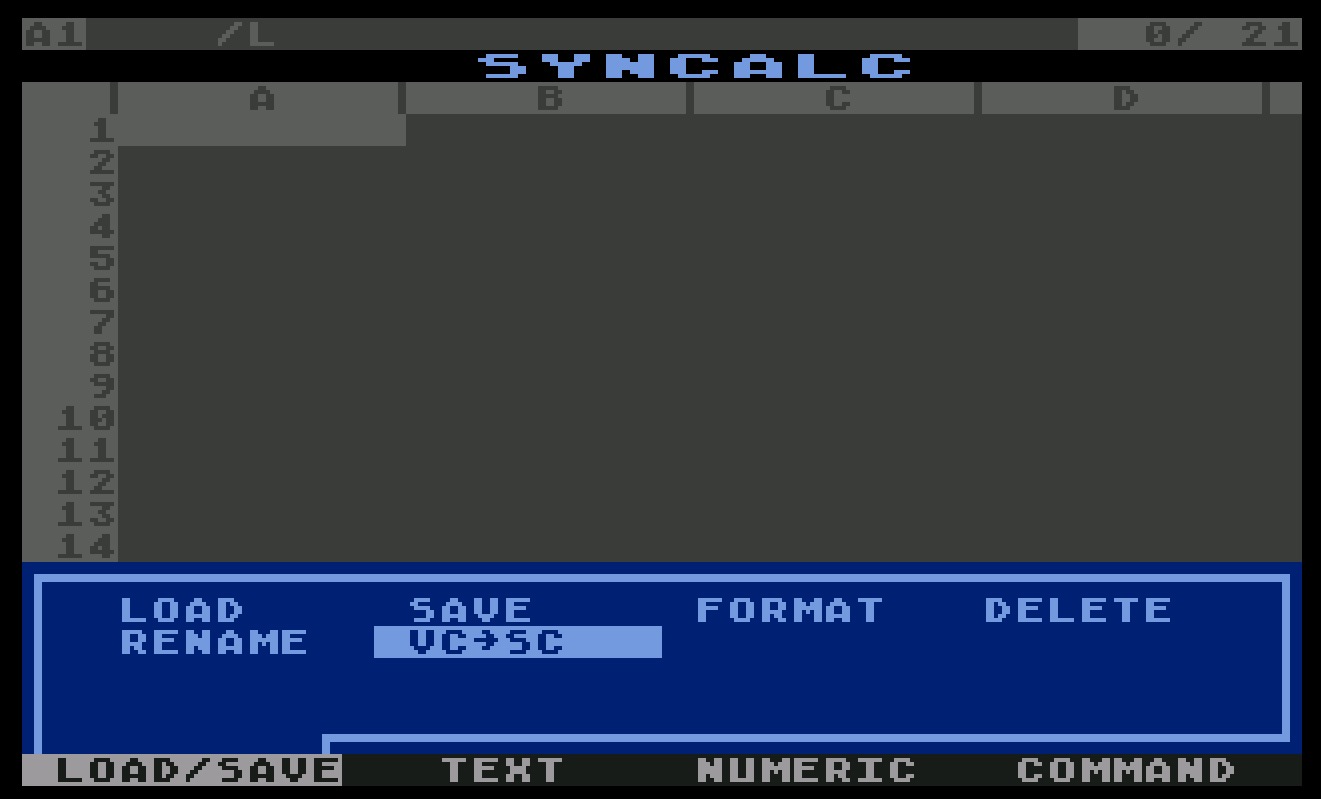

SynCalc VC->SC option selected

SynCalc asking for the program master disk

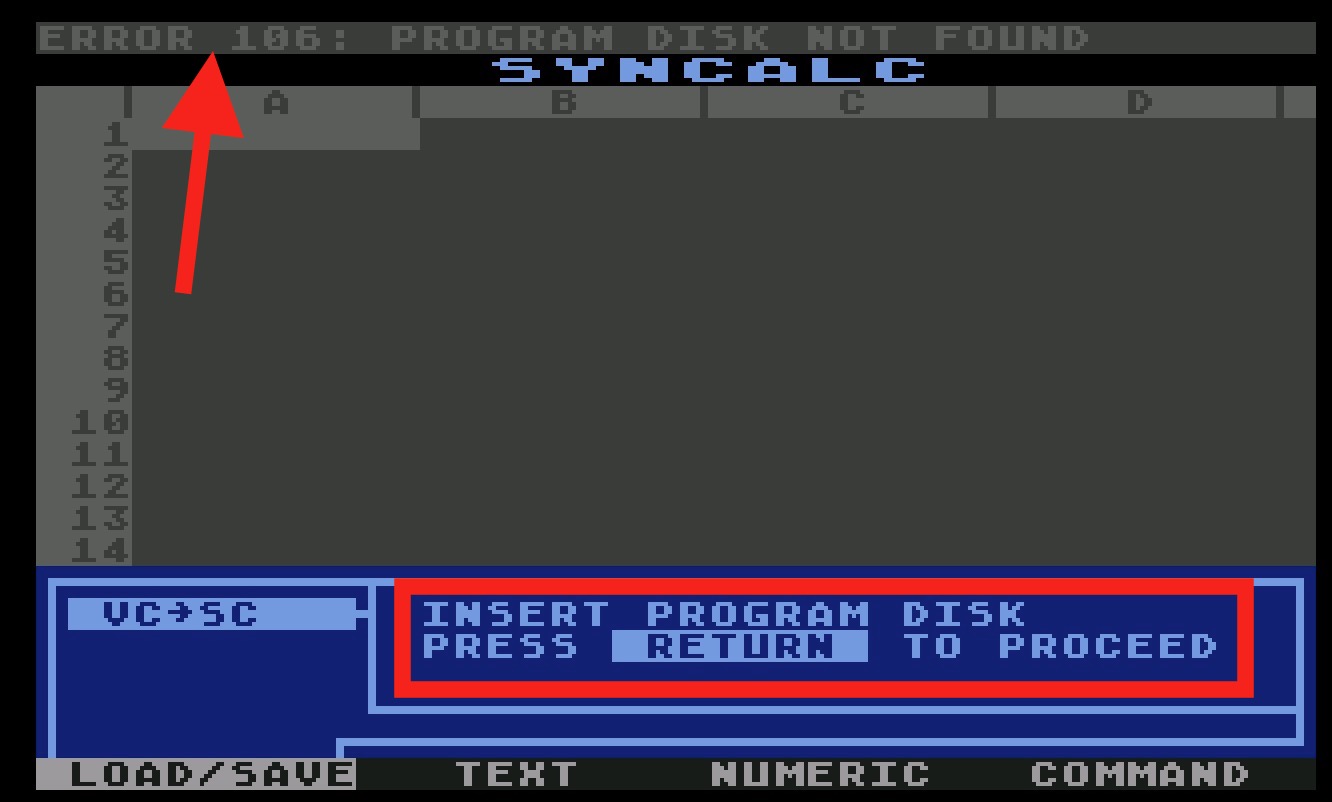

SynCalc failed to load a program from the program master disk

Further, if you have really hard VisiCalc spreadsheets and the 1985 version even in original form fails to import, try the 1983 version, which works like a charm in these very rare cases.

Private Notes from JAC! in German#

Syncalc werde ich mir irgendwann nochmal im Detail anschauen, aber das braucht Zeit.
So wie ich das ganze sehe, was SyncCalc im Original eine XEX die von Synapse auf
einen DOS Disk mit einem entsprechenden DOS gepackt und dann verschlüsselt wurde.
Die Boot-Disk packt das DOS dann sozusagen wieder aus.
Nur so kann sie nach dem Booten Files von den Datendisk lesen.

Emulator Hints#

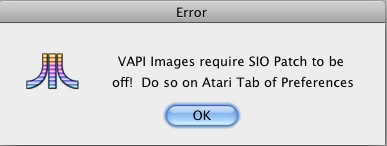

In emulators it could be useful to turn the SIO patch off for using the ".ATX" disk images.

File types#

The program disk itself has a hidden VTOC and is heavily copy protected. A really hard one, even in todays times. SynCalc saves produces three types of files (syntaxes):
a) SC for worksheets
b) DIF for data interchange files (or values)
c) TXT for reporting
Thank you Wade Ripdubski for finding out and sharing your knowledge with us. :-)))

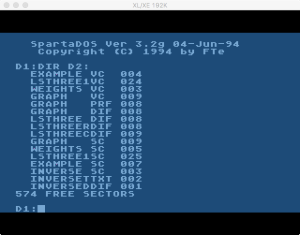

SynCalc file syntax

SynCalc rating from Wade Ripdubski (InverseATASCII). AtariWiki fully admits that rating. Mike Silva has done a men's jpb. Shaft's score would be a 10 out of 10.
Please also take a look at Wade's site: SynCalc at InverseATASCII ; highly recommended!

References#

Synapse Wiki
Br0derbund Wiki
SynCalc at InverseATASCII

Video#

Images#

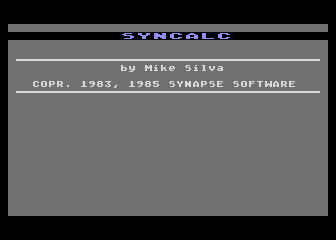

SynCalc startscreen ; thanks to Atarimania

SynCalc start of program ; thanks to Atarimania

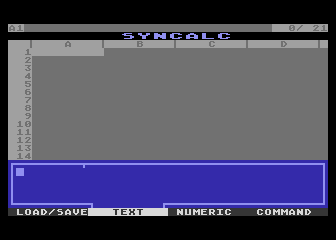

SynCalc pop up window ; thanks to Atarimania

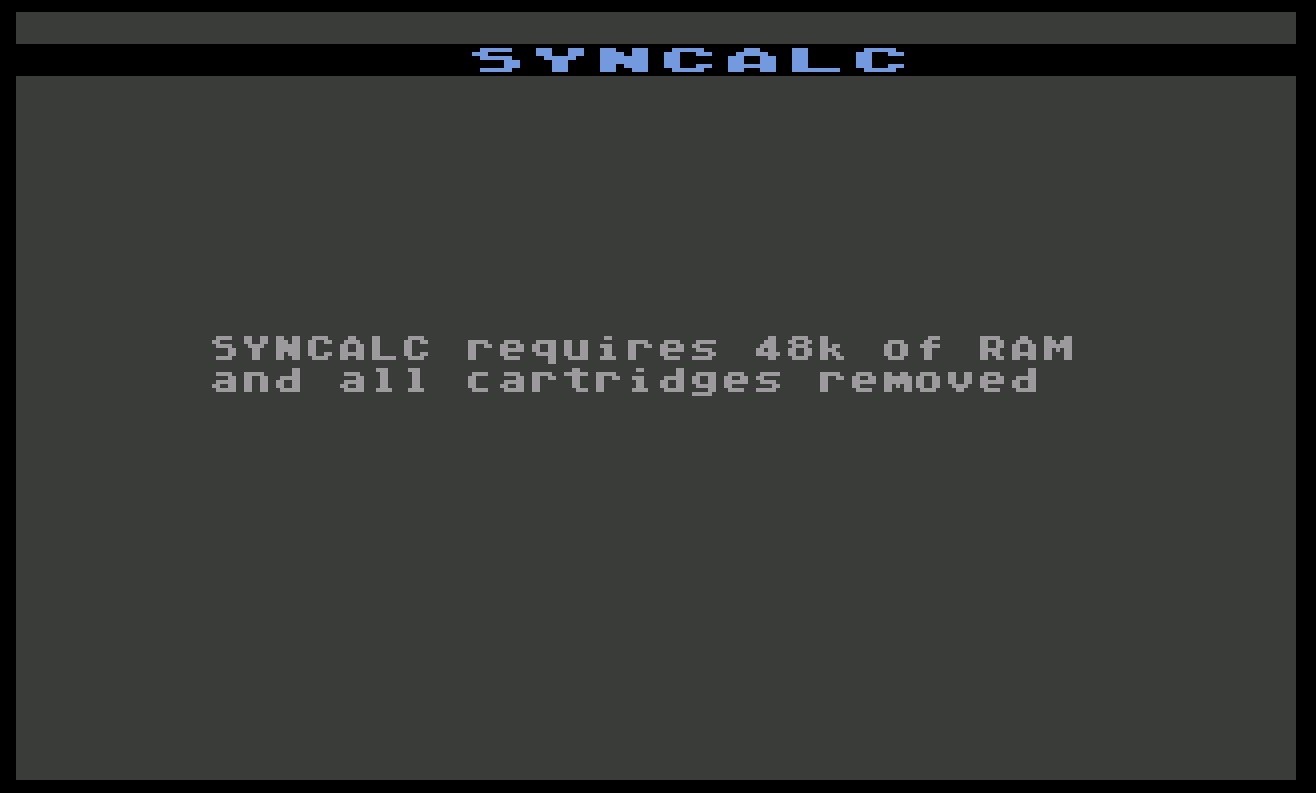

SynCalc requires 48k of RAM and all cartridges removed

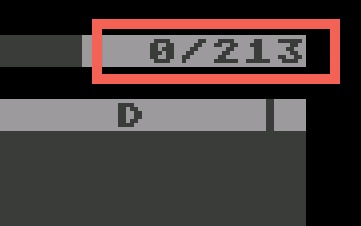

Maximum RAM in KB available for SynCalc regardless how many is installed

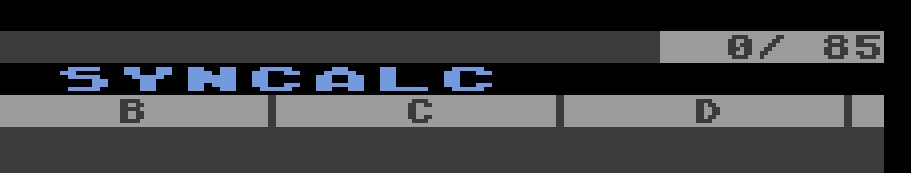

Synapse Syncalc with 128 KB RAM startscreen with 85 KB RAM free

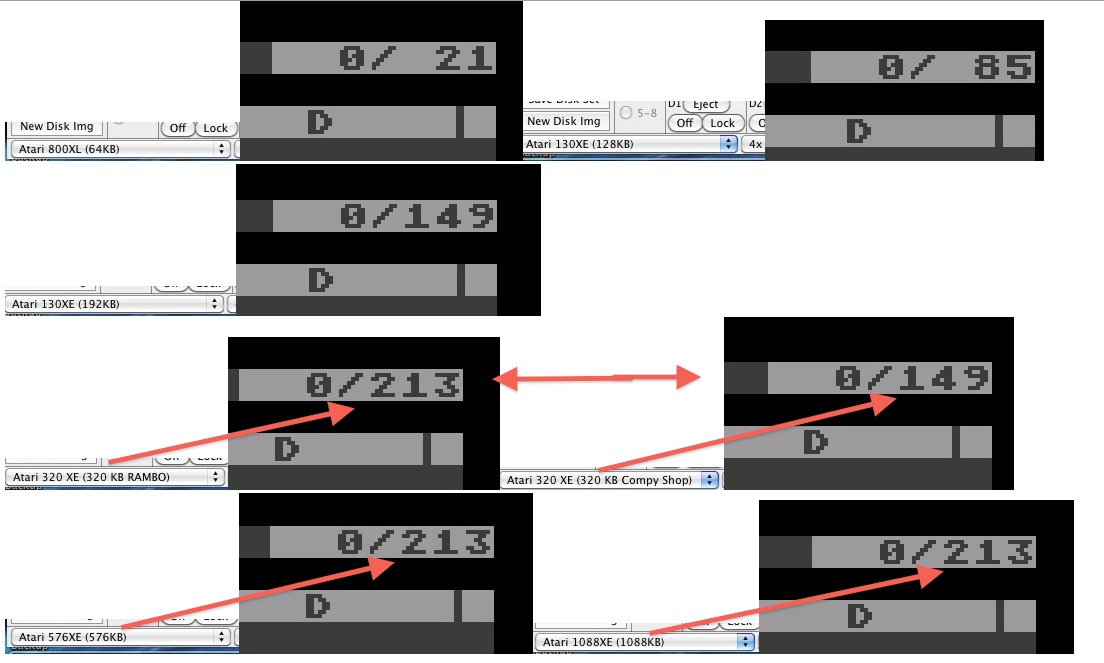

Synapse Syncalc with different machines and different free RAM

SynCalc 1983 version-front of box ; thanks to Atarimania

SynCalc 1983 version-back of box ; thanks to Atarimania

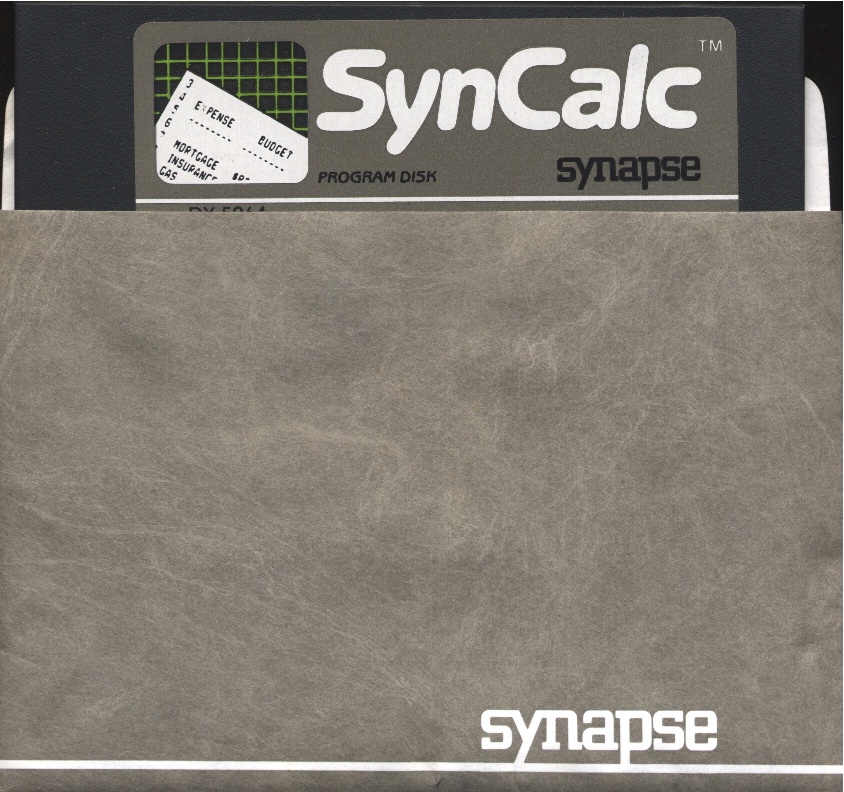

SynCalc 1983 version-diskette ; thanks to Atarimania

SynCalc 1985 version-front of box

SynCalc 1985 version-back of box

SynCalc 1985 version-side of box

SynCalc Template Diskette - image 1 ; thanks to Atarimania

SynCalc Template Diskette - image 2 ; thanks to Atarimania

SynCalc Template Diskette - image 3 ; thanks to RHOD

SynCalc Template Diskette - ad 1

SynCalc Template Diskette - ad 2

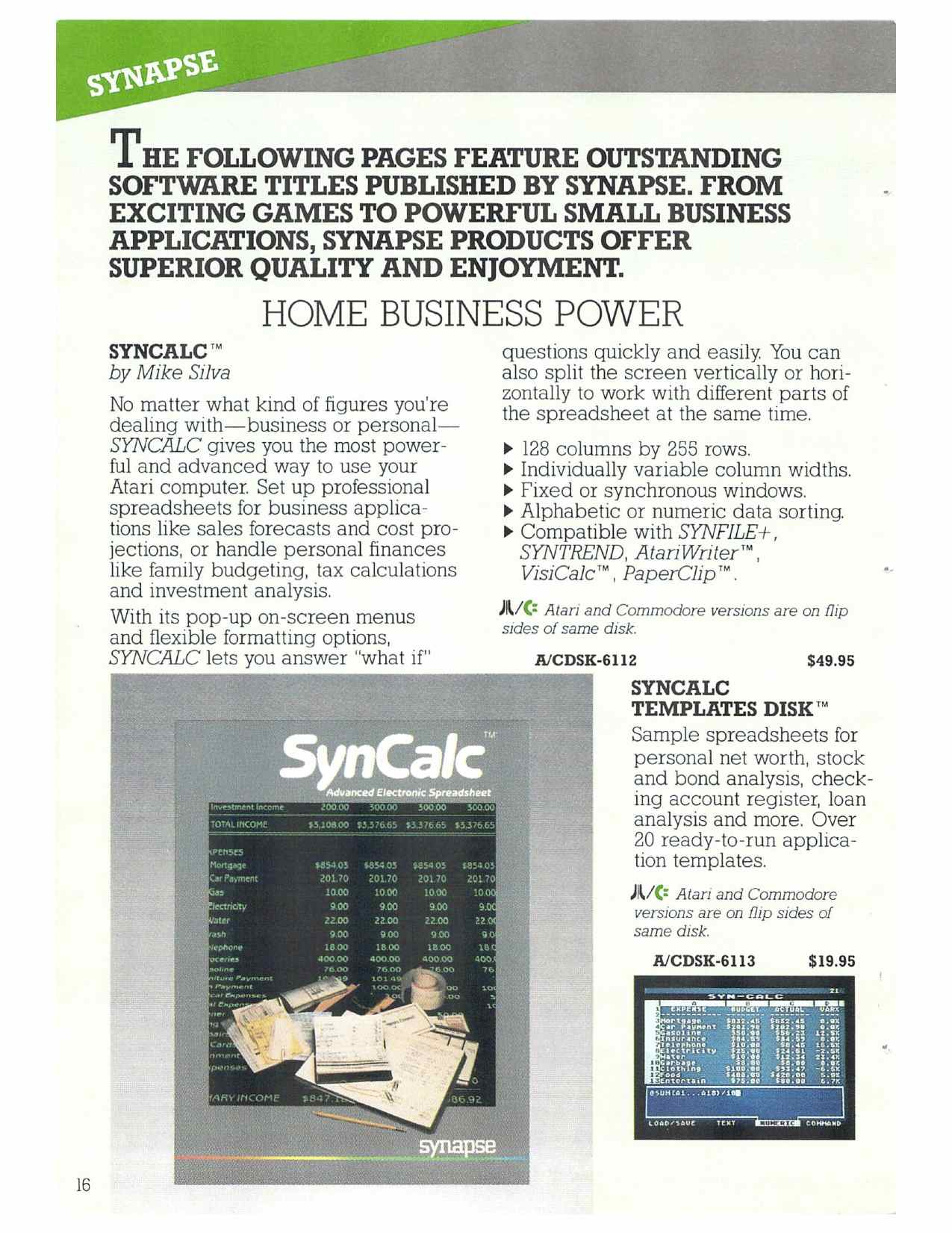

SynCalc ad ; thanks to Atarimania
